Vim li cas thiaj xaiv High -Tapping ceev?
Cov voj voog ntau lawm
Txog 24,000 rpm ncaj qha -tsav spindle
48 m / min ceev traverse ceev
1.2-thib ob lub cuab yeej hloov sijhawm
Txo qhov tsis yog - txiav lub sijhawm rau kev tsim khoom ntau dua
ruaj khov siab -Precision Machining
Qhov tseeb qhov tseeb: ± 0.008mm
Repeatability: ± 0.005 hli
Cov xov zoo sib xws hauv batch ntau lawm
Automation Npaj
Tau tshaj robotic loading systems, tsis siv neeg ntau lawm kab, nti conveyors, thiab advanced coolant systems rau ntse manufacturing daim ntaub ntawv.
Core Technical Advantages

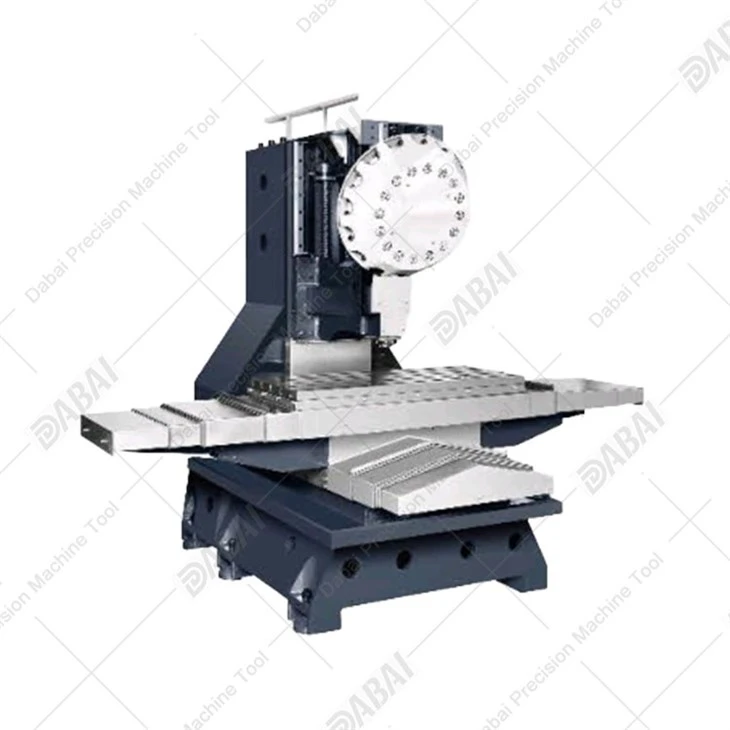

High-Speed Direct-Drive Spindle System
DT800L yog nruab nrog BT30 ncaj qha -tsav spindle muaj peev xwm ncav cuag 20,000 rpm lossis xaiv yeem 24,000 rpm kev teeb tsa.
Cov txiaj ntsig:
● Kev ua haujlwm nrawm dua thiab tapping
● Txo kev co thiab thermal deformation
● Txhim kho lub neej ntawm lub cuab yeej
● Zoo dua nto tiav zoo
Spindle Specifications
|
Yam khoom |
Specification |
|
Spindle Hom |
Direct Drive |
|
Taper |
BT30 |
|
Qhov siab tshaj plaws |
20,000 / 24,000 rpm |
|
Motor Power (S1/S6) |
3.7 / 5.5 kW |
|
Torque (S1 / S6) |
11.8 / 28.7 N·m |
High-Efficiency Motion System
All three axes support rapid traverse speeds of 48 m/min, significantly reducing idle movement and improving overall machine utilization.
Pub System
|
Yam khoom |
Specification |
|
|
48 / 48 / 48 m/min |
|
Txiav Feed Rate |
0-20,000mm / min |
Cov txiaj ntsig:
● Kev tsim tawm ntau dua txhua hnub
● Cov nyiaj rov qab los ntawm cov cuab yeej siv tau nce ntxiv
High Precision thiab kev ntseeg siab
DT800L yog engineered rau ruaj khov, rov ua tau zoo dua machining hauv huab hwm coj- qhov chaw tsim khoom.
|
Yam khoom |
Specification |
|
Positioning raug |
0.008mm ib |
|
Rov ua dua |
0.005 hli |
Yam khoom Specification
●Positioning Accuracy 0.008 mm
●Repeatability 0.005 hli
Tshuab Specifications
Axis Travel
|
Axis |
Mus ncig |
|
X axis |
800 hli |
|
Y Axis |
500 hli |
|
Z axis |
330 hli |
Lub rooj ua haujlwm
|
Yam khoom |
Specification |
|
Rooj Loj |
1000 × 500 hli |
|
T-Qhov |
18 × 5 × 100 hli |
|
Load siab tshaj |
3 50kg |

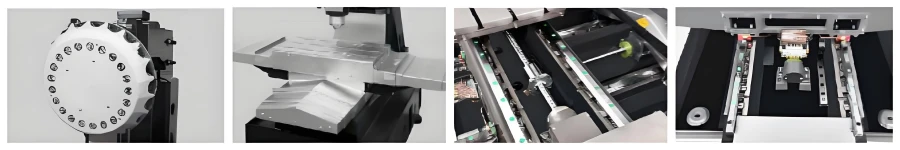

Tool Magazine
|
Yam khoom |
Specification |
|
Hom |
Hom Lub kaus |
|
Muaj peev xwm |
16 / 21 Cov cuab yeej |
|
Tool Hloov Sijhawm |
1.2 vib nas this |
General Machine Data
|
Yam khoom |
Specification |
|
Lub Zog Muaj Peev Xwm |
25 kVA |
|
Cua Siab |
0.65 MPa |
|
Tshuab hnyav |
4 Tons |

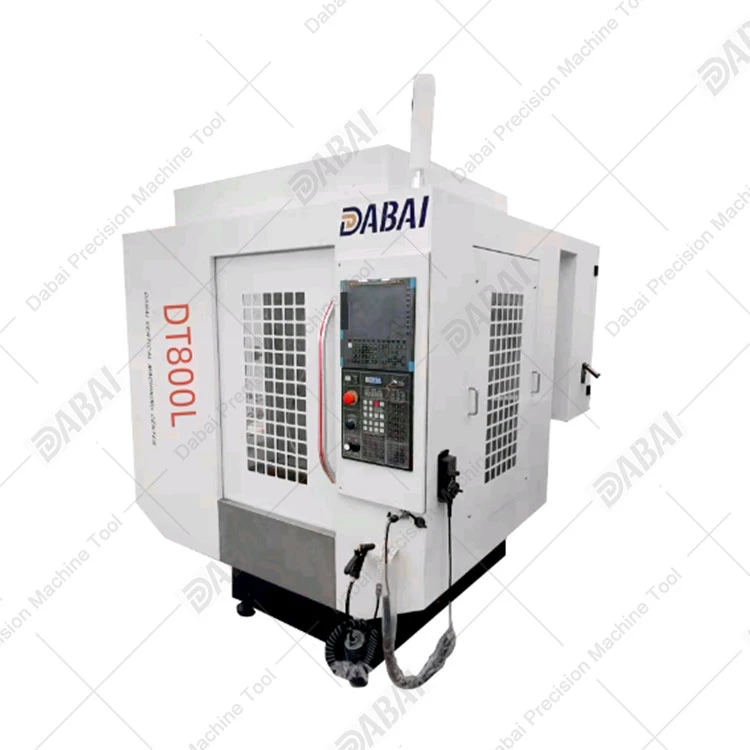

DT800L vs Conventional Vertical Machining Centers
|
Yam khoom |
DT 800 L |
Conventional VMC |
|
Spindle Ceev |
Mus txog 24,000 rpm |
8,000-12,000 rpm |
|
Rapid Traverse |
48m / min |
24-36 m / min |
|
Tool Hloov Sijhawm |
1.2 sec |
2.5-4 sec |
|
Hom kev tsim khoom |
Siab -Tapping ceev |
General Machining |
|
Productivity |
Siab dua |
Txuj |
DT800L tshwj xeeb yog tsim los rau siab - ntim drilling thiab tapping daim ntaub ntawv uas qhov kev ua tau zoo yog qhov tseem ceeb.
Kev lag luam kev siv
DT800L yog dav siv hauv:
●Automotive Cheebtsam Manufacturing
●3C Electronics Production
● Precision Mechanical Parts
● Pwm & Tooling Manufacturing
● Cov khoom siv kho mob
●Aerospace Auxiliary Cheebtsam
Customization Options
Txhawm rau ua kom tau raws li qhov xav tau ntau lawm, DT800L txhawb nqa:
Spindle Options
● 20,000 rpm
● 24,000 rpm
CNC Controller Options
●FANUC
● Siemens
● Mitsubishi
Tool Magazine Options
●16 Cov cuab yeej
●21 Cov cuab yeej
Hais txog DaBai Precision Tshuab cuab yeej
DaBai Precision Tshuab cuab tam (Jiangsu) Co., Ltd.
Kev tsim muaj zog
Tsim los ntawm 2020
Pab pawg tub ntxhais nrog 10+ xyoo ntawm CNC kev lag luam kev paub
4,000㎡ chaw tsim khoom
Ob tug txheej txheem ntau lawm rhiav
Ua kom tiav machining chaw sib dhos muaj peev xwm
500+ cov neeg siv khoom thoob ntiaj teb
Exported rau ntau tshaj 50 lub teb chaws thiab cheeb tsam
Peb cov khoom suav nrog
Vertical Machining Centers
Kab rov tav Machining Centers
Gantry Machining Centers
5-Axis Machining Centers
High -Speed Drilling & Tapping Centers
CNC tig Centers
Quality Assurance
Txhua lub tshuab DT800L raug tshuaj xyuas nruj ua ntej xa zaub mov.
Cov txheej txheem tswj kom zoo
Laser Interferometer Calibration
Ballbar raug kuaj
Spindle Performance Testing
Geometric raug soj ntsuam
Tag Nrho Tshuab sim ua haujlwm
Cov ntawv pov thawj
ISO 9001 Kev Tswj Xyuas Zoo
ISO 14001 Environmental Management System
ISO 45001 Kev Ua Haujlwm Kev Noj Qab Haus Huv & Kev Nyab Xeeb Kev Nyab Xeeb
CE Daim Ntawv Pov Thawj Muaj
Kev Txawj Ntse
18 Utility Model Patents
1 Invention Patent
Cov ntaub ntawv tshuaj xyuas tuaj yeem muab tau raws li qhov kev thov.
Ntim & Xa
Export Ntim
Reinforced ntoo crate
Anti- tiv thaiv xeb
Moisture -cov ntaub ntawv pov thawj
Kev poob siab- tiv thaiv fixation system
Haum rau
Hiav txwv Freight
Cua Freight
Kev thauj mus los hauv av
Lub sij hawm xa tuaj
Standard Configuration: 30-45 Hnub
Customized Machine: Raws li Cov Kev Xav Tau
Ntiaj teb no Tom qab -Kev Pabcuam Muag
● 12-Lub Hlis Warranty
● 24/7 Online Technical Support
● Tej thaj chaw deb Diagnostics & Troubleshooting
●Ntawm -Site Installation Available
● Kev cob qhia tus neeg ua haujlwm suav nrog
● Lub Sijhawm Spare Parts Supply
●Software Update Support
Kev Pabcuam Ceev
● Teb hauv 1 teev
● Cov khoom seem xa khoom txhawb nqa
● Kev pab cuam thoob ntiaj teb
