CNC tig Center

CNC Turning Centers: High-Precision Multi-Axis Lathes rau Complex Component Manufacturing

Kab rov tav tig Center
Qhov siab tshaj plaws spindle ceev ntawm 4200 rpm ua ke nrog ceev traverse tus nqi ntawm 24 m / min tso cai rau lub sij hawm sai dua thiab txhim kho ntau lawm throughput.
Ntau

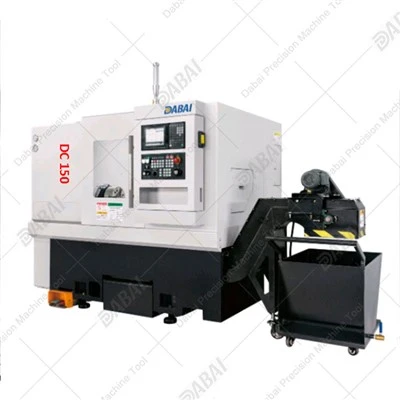

CNC tig Center Tshuab
Siab -rigidity 45℃inclined txaj qauv rau kev ruaj ntseg txiav kev ua tau zoo Fast 8-txoj hauj lwm servo turret nrog 0.3s cov cuab yeej hloov efficiency
Ntau

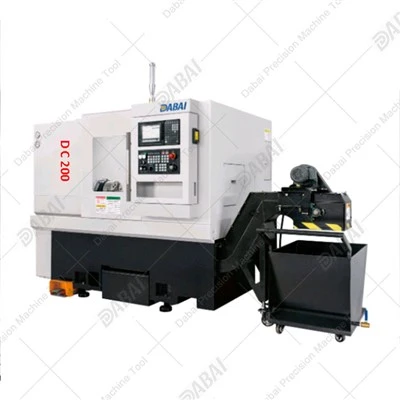

CNC tig Mill Center
CNC Turn Mill Center yog lub siab -rigidity multi-tasking machining system tsim los rau precision tig, milling, drilling, thiab tapping nyob rau hauv ib qho kev teeb tsa.
Ntau

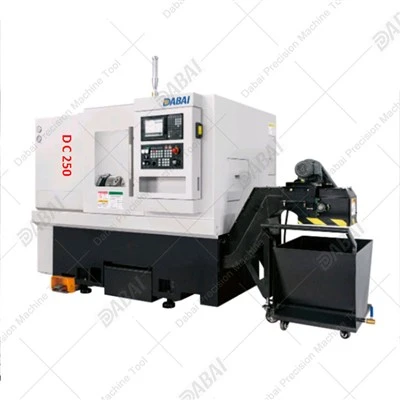

High-Turning Centers ua tau zoo
High-Productivity Turning Centers (DC250) yog engineered rau hnyav-lub luag hauj lwm, siab- ntim machining ntawm nruab nrab- loj precision Cheebtsam xws li shafts, flanges, bushings, thiab...
Ntau

Product Selector Matrix

Xaiv lub platform zoo yog qhov tseem ceeb rau koj hauv pem teb efficiency. Tshawb xyuas peb cov txheej txheem raws li koj qhov nyuaj thiab ntim qhov xav tau:

Tshuab Series	Kev teeb tsa	Max tig txoj kab uas hla	Max tig Length	Daim phiaj siv
T-Series (Standard)	2-Axis / Slant txaj	320mm - 500 hli	500mm - 1000 hli	Ncej, bushings, thiab siab - ntim concentric industrial fittings.
TL-Series (Cov Cuab Yeej Nyob)	3-Axis / 4-Axis (C + Y Axis)	450mm - 650 hli	750mm - 1500 hli	Complex off -center milling, cross-drilling, thiab aerospace fasteners.
TS-Series (Dual{1}}Spindle)	Multi-Kev Ua Haujlwm (Dual Spindle + Y)	350mm - 550 hli	600mm - 1200 hli	Rov qab- kawg machining, complex automotive li qub, thiab kev kho mob cog.
VT-Series (Ntu)	Vertical Chucking	600mm - 1200 hli	500mm - 800 hli	Hnyav, asymmetrical, lossis loj - txoj kab uas hla nres nruas, flanges, thiab iav.

Kev Lag Luam Solutions & Machining Challenges Peb daws

Peb qhov hnyav -lub luag haujlwm CNC tig qhov chaw yog tsim los tshem tawm cov kev ua haujlwm tsis zoo no:

Tshem tawm cov haujlwm thib ob

Nrog kev xaiv nyob twj ywm, Y-axis, thiab sub- spindles, peb cov cav tov tso cai rau koj ua txoj kev tig, milling, drilling, thiab tapping nyob rau hauv ib qho kev teeb tsa (Ua tiav- hauv -Ib qho kev ua haujlwm). Qhov no txiav lub sij hawm voj voog mus txog 40% thiab tshem tawm cov teeb meem kev teeb tsa los ntawm phau ntawv hloov chaw.

Thermal Displacement Control

Peb cov symmetry headstock tsim thiab integrated spindle txias tshuab counteract thaum tshav kub kub buildup nyob rau hauv tas li ntawd, siab -RPM ntau lawm khiav, xyuas kom meej qhov sib xws ntawm thawj feem mus rau 10,000th.

Quality Assurance

Renishaw Laser Calibration:Axis Alignment. Txhua qhov axis linear yog mapped thiab calibrated siv lub Renishaw Laser Interferometer los xyuas thiab them nyiaj rau pitch yuam kev thiab backlash, kom ntseeg tau tias qhov chaw raug raws li thoob ntiaj teb ISO 230-2 cov qauv.

Spindle Dynamic Balancing:Kev vibration Mitigation.
Spindles yog sib npaug dynamically ntawm qhov siab tshaj plaws RPM kom ua tiav qib kev vibration ntawm G0.4, txo cov kev sib raug zoo tawm tswv yim uas cuam tshuam qhov nto tiav thiab lub neej cuab yeej.

Ballbar Circularity Testing:Interpolation raug. Peb ua qhov kev xeem Renishaw QC20-W Ballbar txhawm rau txheeb xyuas qhov geometric ncig thiab synchronization ntawm X thiab Z axes thaum tib lub sijhawm interpolation, lav zoo meej radii thiab contours.

72-Tsev Nruam Khiav-In:Kev nyuaj siab Endurance. Ua ntej packing, qhov chaw tig tiav tiav yuav tsum tau ua tiav 72- teev tas li qhuav- khiav lub voj voog simulating hloov pauv hloov ceev, turret indexings, thiab ceev traverses kom tshem tawm cov me nyuam ntxov ntxov ua tsis tiav hauv cov khoom.

Ntiaj teb no Lifeline Support & Tom qab - Muag Logistics

24-teev Engineering teb

Peb cov lus Askiv tshwj xeeb-hais lus thov engineers muab kev daws teeb meem los ntawm kev tshuaj ntsuam video thiab cov chaw taws teeb CNC maub los nkag hauv 24 teev tom qab xa daim pib.

Guaranteed Spare Parts Lifecycle

Peb khaws $ 3M cov khoom muag ntawm cov khoom siv tseem ceeb (modules, drives, sensors, encoders, thiab seals). Kev txiav txim tau muab xa tuaj ntawm DHL / FedEx Express hauv 48 teev.

Turnkey Automation & Custom Fixturing

Peb nyob rau hauv -lub tsev engineering department tsim thiab integrates kev cai hydraulic chucks, tsis tu ncua so, tsis siv neeg bar feeders, thiab Gantry Loading/Robot Arm automation haum rau koj tej yam kos duab.

FAQ

Q: Dab tsi yog qhov txawv ntawm cov kev taw qhia thiab lub thawv rau ntawm koj lub CNC tig chaw, thiab kuv yuav xaiv li cas?

A: Peb muab ob qho kev teeb tsa nyob ntawm koj daim ntawv thov. Linear roller guideways (THK/HIWIN) muab kev sib txhuam qis dua, kev nrawm dua, thiab zoo tagnrho rau kev ua haujlwm siab -ceev, siab - precision machining ntawm txhuas thiab txheem steels. Lub thawv txoj kev (hardened thiab hauv av square txoj kev) muab qhov siab tshaj plaws ntawm qhov chaw sib cuag thiab dampening muaj peev xwm, ua rau lawv superior rau hnyav -lub luag hauj lwm, cuam tshuam kev txiav ntawm tawv alloys xws li Titanium los yog Inconel, raws li lawv txuas lub cuab tam lub neej nyob rau hauv siab torque.

Q: Koj lub chaw CNC tig tuaj yeem ua ke nrog kuv cov software CAD / CAM uas twb muaj lawm?

A: Yog. Txij li thaum peb cov tshuab siv kev lag luam-tus qauv FANUC (0i-TF Plus) thiab Siemens (SINUMERIK 828D) tswj cov tshuab, lawv tau ua tiav nrog cov ntsiab lus tseem ceeb CAD/CAM ncej- cov txheej txheem suav nrog Mastercam, SolidCAM, Edgecam, thiab Fusion 360{7} los yog ua haujlwm rau koj cov ntaub ntawv thaum lub sijhawm ua haujlwm kev teeb tsa.

Q: Koj muaj kev xaiv dab tsi rau cov cuab yeej nyob thiab cov neeg tuav cov cuab yeej tsav?

A: Peb TL thiab TS series feature siab -kev ua tau zoo BMT (Block Mounted Tooling) los yog VDI动力刀塔 (Live Tooling turrets), feem ntau siv BMT55 lossis BMT65 cov qauv rau qhov siab tshaj plaws. Cov cuab yeej tsav tsheb txhawb nqa radial thiab axial milling, drilling, thiab tapping muaj peev xwm, tsav los ntawm lub zog ywj siab servo lub cev muaj zog kom tshem tawm cov teeb tsa theem nrab ntawm cov tshuab milling.

Q: Koj lub Hoobkas lav tau li cas lub tshuab geometric raug nyob ntev - siv tas li?

A: Ntev-lub sij hawm ruaj khov nyob ntawm peb Meehanite cam khwb cia hlau monoblock txaj, uas tau dhau los ua kev nyuaj siab thermal-txo cov txheej txheem kev laus ua ntej machining. Tsis tas li ntawd, peb cov spindles feature symmetric headstock castings thiab cov qauv kev sib xyaw roj- chilling kaw- voj tshuab cua txias kom txo qis thermal loj hlob thaum lub sij hawm ntev - hloov ntau lawm.

Q: Koj puas txhawb Turnkey Solutions, suav nrog kev cai fixtures thiab automation?

A: Yog lawm. Peb nyob rau hauv - pab neeg ua haujlwm hauv tsev muab kev daws teeb meem Turnkey ua tiav. Koj xa peb cov duab kos duab (.STEP/.DXF) thiab cov hom phiaj ntim ntau lawm, thiab peb yuav tsim kev cai hydraulic chucks/fixtures, xaiv cov cuab yeej zoo, qhov kev pab cuam, thiab integrate automation zoo li Bar Feeders lossis Gantry Robotic Loaders.

Q: Lub sij hawm ua tus txheej txheem yog dab tsi rau lub tshuab txheem piv rau kev tsim kho?

A: Cov qauv tsim qauv (xws li peb 2-axis T-Series) feem ntau khaws cia hauv Tshuag lossis tuaj yeem sib sau ua ke thiab sim hauv 30 txog 45 hnub. Customized orders with sub-spindles, multi-axis live tooling, los yog automation systems tailored feem ntau muaj lub sij hawm ua tus coj ntawm 60 mus rau 90 hnub, nyob ntawm seb cov khoom specification.

Q: Koj ua li cas txog kev xa khoom, kev lis kev cai, thiab xa mus rau North America thiab Europe?

A: Peb niaj hnub xa khoom thoob ntiaj teb raws li Incoterms suav nrog FOB, CIF, thiab DDP. Rau North American thiab European buyers, peb muab hnyav -lub luag hauj lwm seaworthy nqus tsev vacuum- ntim ntoo crating los tiv thaiv xeb. Peb ua haujlwm nrog cov kws tshaj lij kev lag luam freight forwarders los tswj kev lis kev cai clearance, daim ntawv cog lus, thiab inland flatbed xa ncaj qha rau koj lub qhov rooj.

Q: Dab tsi ua raws li cov qauv ua koj cov khoom siv hluav taws xob thiab cov tshuab ua tau raws li?

A: Tag nrho peb cov CNC tig qhov chaw destined rau Tebchaws Europe nqa cov ntawv pov thawj CE. Rau lub lag luam North American, peb cov khoom siv hluav taws xob thiab cov kab hluav taws xob tuaj yeem teeb tsa kom ua raws li NFPA 79 thiab UL 508A cov qauv, siv lub ntiaj teb -cov khoom pov thawj (Schneider, Siemens, Omron) kom dhau qhov kev soj ntsuam kev nyab xeeb hauv cheeb tsam.

Q: Koj txoj cai tswj hwm tus qauv yog dab tsi, thiab cov khoom pov thawj xa tawm li cas?

A: Peb muab tag nrho 12-hli warranty npog tag nrho cov khoom siv hluav taws xob thiab hluav taws xob (tsis suav nrog cov khoom siv xws li cov cuab yeej txiav thiab wipers). Yog tias ib qho khoom ua tsis tiav vim yog kev tsim khoom tsis raug, cov khoom hloov pauv raug xa tawm ntawm DHL / FedEx Express hauv 24 txog 48 teev ntawm peb cov nuj nqis kom txo koj lub sijhawm poob qis.

Raws li ib qho ntawm cov kws tshaj lij CNC tig chaw tuam ntxhab thiab cov muag khoom hauv Suav teb, peb tau tshwj xeeb los ntawm cov khoom zoo thiab tus nqi zoo. Thov so assured mus yuav advanced CNC tig qhov chaw muag ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.
